MAD problems

I encountered alot of problems b/c of using mac, i had to change code.config security to weak and alter the edt.py file like this below,

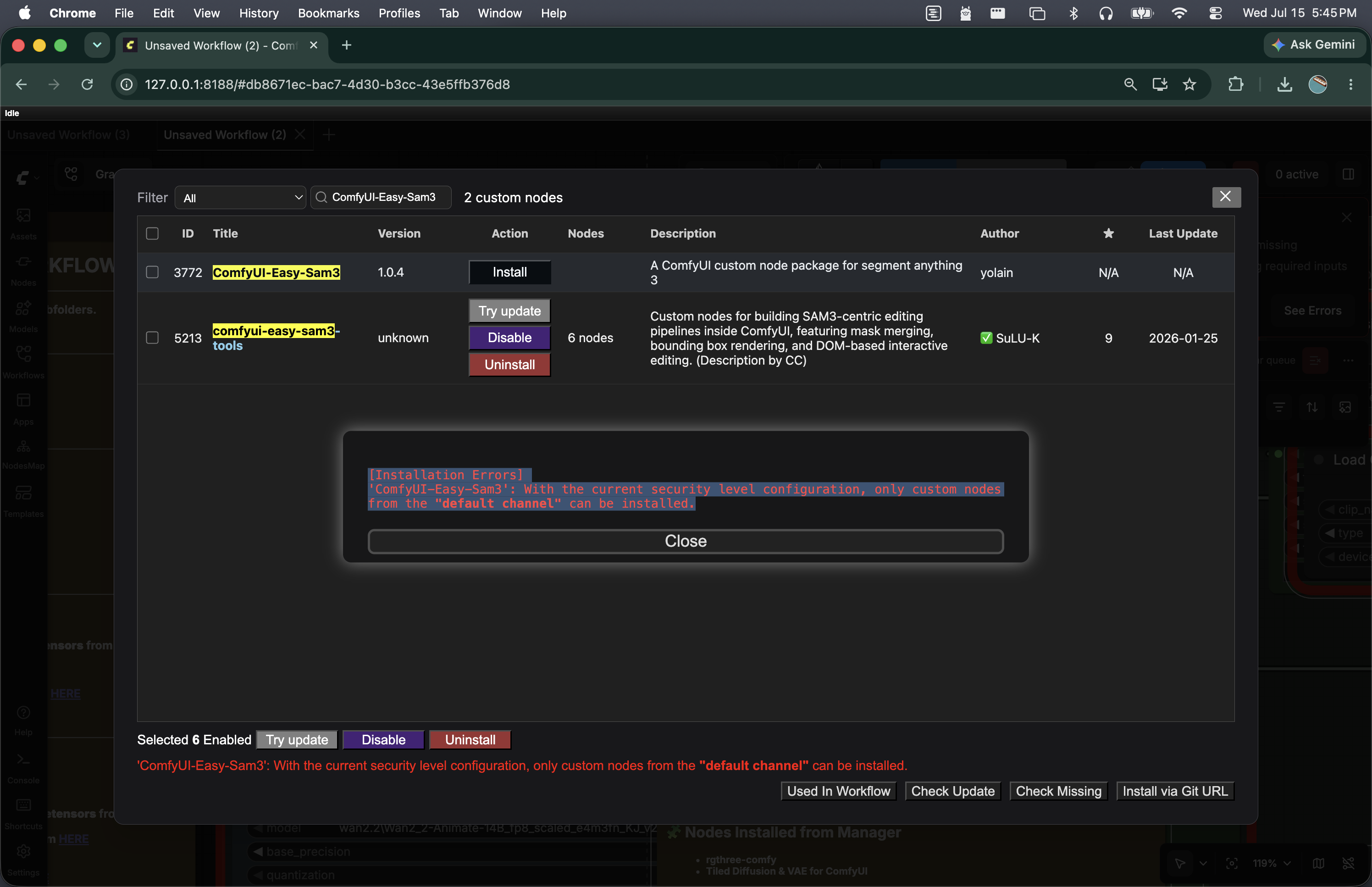

I changed security back to

normal but keep this in mind

This was do to the use of

comfyui-easy-sam3

from comfyui manager

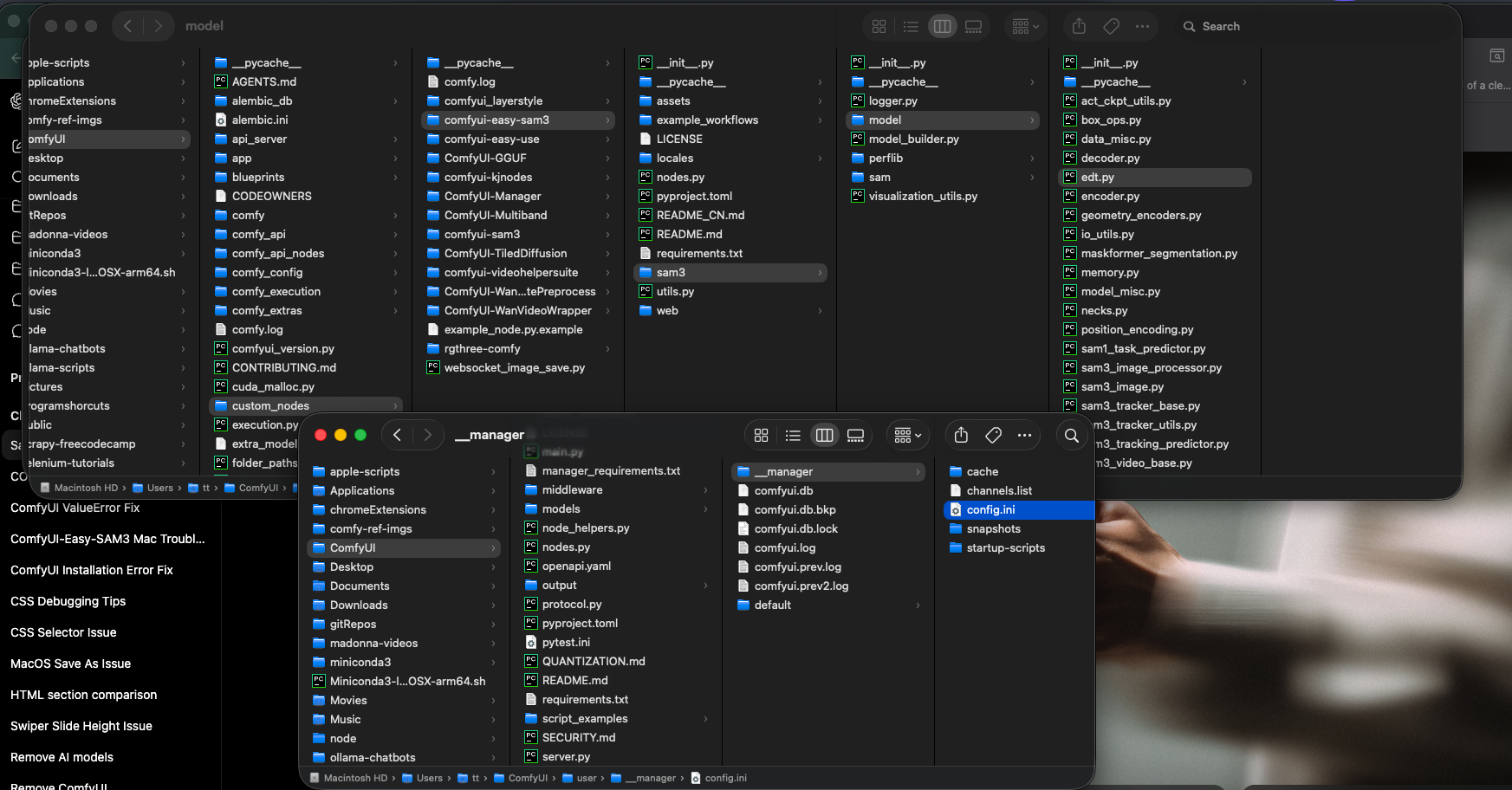

edt.py

# Copyright (c) Meta Platforms, Inc. and affiliates. All Rights Reserved

"""Triton kernel for euclidean distance transform (EDT)"""

import torch
import cv2
import numpy as np

try:
    import triton
    import triton.language as tl
    HAS_TRITON = True
except ImportError:
    triton = None
    tl = None
    HAS_TRITON = False
"""
Disclaimer: This implementation is not meant to be extremely efficient. A CUDA kernel would likely be more efficient.
Even in Triton, there may be more suitable algorithms.

The goal of this kernel is to mimic cv2.distanceTransform(input, cv2.DIST_L2, 0).
Recall that the euclidean distance transform (EDT) calculates the L2 distance to the closest zero pixel for each pixel of the source image.

For images of size NxN, the naive algorithm would be to compute pairwise distances between every pair of points, leading to a O(N^4) algorithm, which is obviously impractical.
One can do better using the following approach:
- First, compute the distance to the closest point in the same row. We can write it as Row_EDT[i,j] = min_k (sqrt((k-j)^2) if input[i,k]==0 else +infinity). With a naive implementation, this step has a O(N^3) complexity
- Then, because of triangular inequality, we notice that the EDT for a given location [i,j] is the min of the row EDTs in the same column. EDT[i,j] = min_k Row_EDT[k, j]. This is also O(N^3)

Overall, this algorithm is quite amenable to parallelization, and has a complexity O(N^3). Can we do better?

It turns out that we can leverage the structure of the L2 distance (nice and convex) to find the minimum in a more efficient way.
We follow the algorithm from "Distance Transforms of Sampled Functions" (https://cs.brown.edu/people/pfelzens/papers/dt-final.pdf), which is also what's implemented in opencv

For a single dimension EDT, we can compute the EDT of an arbitrary function F, that we discretize over the grid. Note that for the binary EDT that we're interested in, we can set F(i,j) = 0 if input[i,j]==0 else +infinity
For now, we'll compute the EDT squared, and will take the sqrt only at the very end.
The basic idea is that each point at location i spawns a parabola around itself, with a bias equal to F(i). So specifically, we're looking at the parabola (x - i)^2 + F(i)
When we're looking for the row EDT at location j, we're effectively looking for min_i (x-i)^2 + F(i). In other word we want to find the lowest parabola at location j.

To do this efficiently, we need to maintain the lower envelope of the union of parabolas. This can be constructed on the fly using a sort of stack approach:
 - every time we want to add a new parabola, we check if it may be covering the current right-most parabola. If so, then that parabola was useless, so we can pop it from the stack
 - repeat until we can't find any more parabola to pop. Then push the new one.

This algorithm runs in O(N) for a single row, so overall O(N^2) when applied to all rows
Similarly as before, we notice that we can decompose the algorithm for rows and columns, leading to an overall run-time of O(N^2)

This algorithm is less suited for to GPUs, since the one-dimensional EDT computation is quite sequential in nature. However, we can parallelize over batch and row dimensions.
In Triton, things are particularly bad at the moment, since there is no support for reading/writing to the local memory at a specific index (a local gather is coming soon, see https://github.com/triton-lang/triton/issues/974, but no mention of writing, ie scatter)
One could emulate these operations with masking, but in initial tests, it proved to be worst than naively reading and writing to the global memory. My guess is that the cache is compensating somewhat for the repeated single-point accesses.


The timing obtained on a H100 for a random batch of masks of dimension 256 x 1024 x 1024 are as follows:
- OpenCV: 1780ms (including round-trip to cpu, but discounting the fact that it introduces a synchronization point)
- triton, O(N^3) algo: 627ms
- triton, O(N^2) algo: 322ms

Overall, despite being quite naive, this implementation is roughly 5.5x faster than the openCV cpu implem

"""

if HAS_TRITON:
    @triton.jit
    def edt_kernel(inputs_ptr, outputs_ptr, v, z, height, width, horizontal: tl.constexpr):
        # This is a somewhat verbatim implementation of the efficient 1D EDT algorithm described above
        # It can be applied horizontally or vertically depending if we're doing the first or second stage.
        # It's parallelized across batch+row (or batch+col if horizontal=False)
        # TODO: perhaps the implementation can be revisited if/when local gather/scatter become available in triton
        batch_id = tl.program_id(axis=0)
        if horizontal:
            row_id = tl.program_id(axis=1)
            block_start = (batch_id * height * width) + row_id * width
            length = width
            stride = 1
        else:
            col_id = tl.program_id(axis=1)
            block_start = (batch_id * height * width) + col_id
            length = height
            stride = width

        # This will be the index of the right most parabola in the envelope ("the top of the stack")
        k = 0
        for q in range(1, length):
            # Read the function value at the current location. Note that we're doing a singular read, not very efficient
            cur_input = tl.load(inputs_ptr + block_start + (q * stride))
            # location of the parabola on top of the stack
            r = tl.load(v + block_start + (k * stride))
            # associated boundary
            z_k = tl.load(z + block_start + (k * stride))
            # value of the function at the parabola location
            previous_input = tl.load(inputs_ptr + block_start + (r * stride))
            # intersection between the two parabolas
            s = (cur_input - previous_input + q * q - r * r) / (q - r) / 2

            # we'll pop as many parabolas as required
            while s <= z_k and k - 1 >= 0:
                k = k - 1
                r = tl.load(v + block_start + (k * stride))
                z_k = tl.load(z + block_start + (k * stride))
                previous_input = tl.load(inputs_ptr + block_start + (r * stride))
                s = (cur_input - previous_input + q * q - r * r) / (q - r) / 2

            # Store the new one
            k = k + 1
            tl.store(v + block_start + (k * stride), q)
            tl.store(z + block_start + (k * stride), s)
            if k + 1 < length:
                tl.store(z + block_start + ((k + 1) * stride), 1e9)

        # Last step, we read the envelope to find the min in every location
        k = 0
        for q in range(length):
            while (
                k + 1 < length
                and tl.load(
                    z + block_start + ((k + 1) * stride), mask=(k + 1) < length, other=q
                )
                < q
            ):
                k += 1
            r = tl.load(v + block_start + (k * stride))
            d = q - r
            old_value = tl.load(inputs_ptr + block_start + (r * stride))
            tl.store(outputs_ptr + block_start + (q * stride), old_value + d * d)

def edt_triton(data: torch.Tensor):
    if not HAS_TRITON:
        data_np = data.detach().cpu().numpy()

        result = np.stack([
            cv2.distanceTransform(
                img.astype(np.uint8),
                cv2.DIST_L2,
                0
            )
            for img in data_np
        ])

        return torch.from_numpy(result).to(data.device)
    """
    Computes the Euclidean Distance Transform (EDT) of a batch of binary images.

    Args:
        data: A tensor of shape (B, H, W) representing a batch of binary images.

    Returns:
        A tensor of the same shape as data containing the EDT.
        It should be equivalent to a batched version of cv2.distanceTransform(input, cv2.DIST_L2, 0)
    """
    assert data.dim() == 3
    assert data.device.type in ["cuda", "mps", "cpu"]
    B, H, W = data.shape
    data = data.contiguous()

    # Allocate the "function" tensor. Implicitly the function is 0 if data[i,j]==0 else +infinity
    output = torch.where(data, 1e18, 0.0)
    assert output.is_contiguous()

    # Scratch tensors for the parabola stacks
    parabola_loc = torch.zeros(B, H, W, dtype=torch.uint32, device=data.device)
    parabola_inter = torch.empty(B, H, W, dtype=torch.float, device=data.device)
    parabola_inter[:, :, 0] = -1e18
    parabola_inter[:, :, 1] = 1e18

    # Grid size (number of blocks)
    grid = (B, H)

    # Launch initialization kernel
    edt_kernel[grid](
        output.clone(),
        output,
        parabola_loc,
        parabola_inter,
        H,
        W,
        horizontal=True,
    )

    # reset the parabola stacks
    parabola_loc.zero_()
    parabola_inter[:, :, 0] = -1e18
    parabola_inter[:, :, 1] = 1e18

    grid = (B, W)
    edt_kernel[grid](
        output.clone(),
        output,
        parabola_loc,
        parabola_inter,
        H,
        W,
        horizontal=False,
    )
    # don't forget to take sqrt at the end
    return output.sqrt()



3 - new errors with cuda

Since i'm not using nividia, python script are all messed, first error today we're attempting to fix is is in ComfyUI/custom_nodes/comfyui-easy-sam3/sam3/model/position_encoding.py

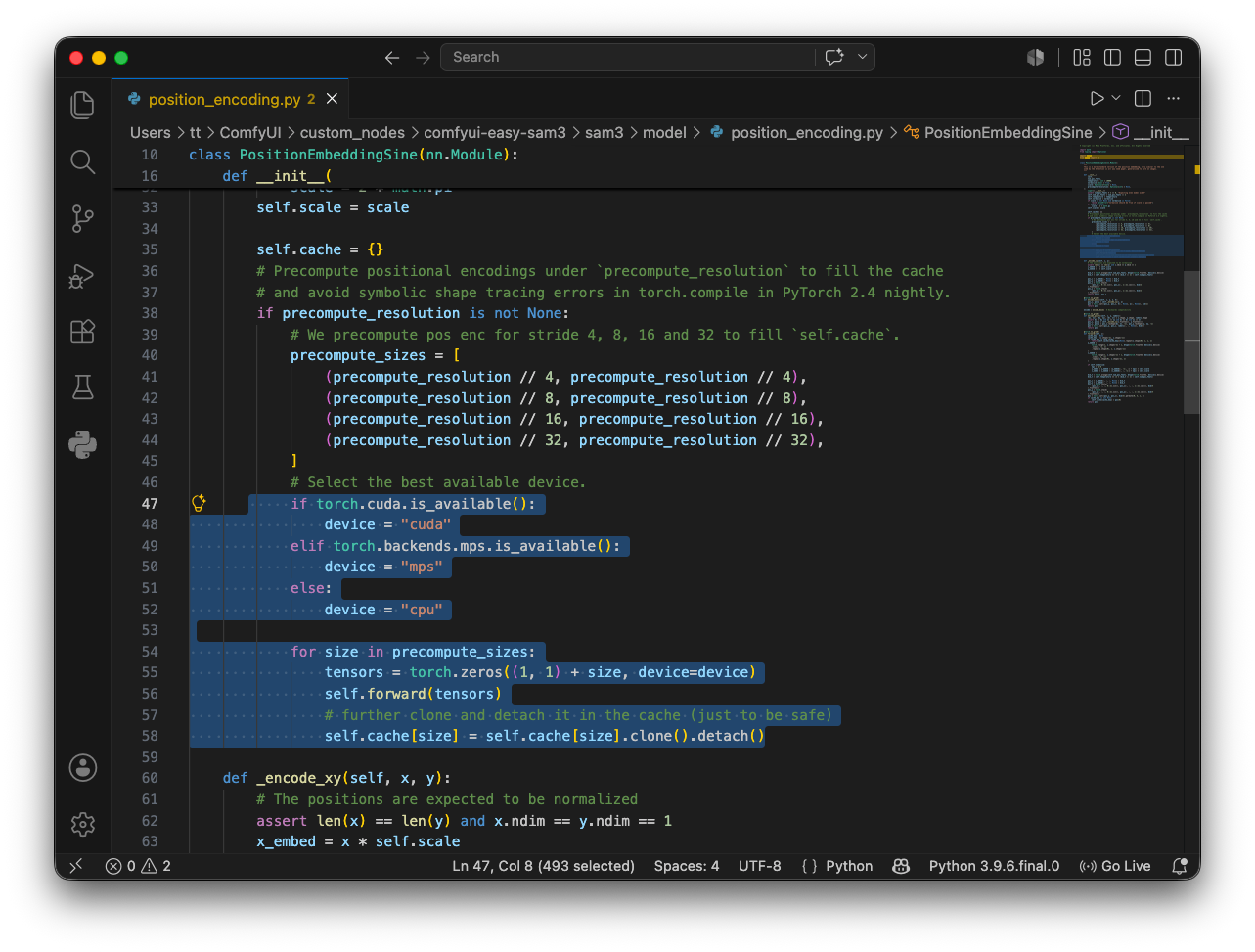

changing line 46 from this

            for size in precompute_sizes:
                tensors = torch.zeros((1, 1) + size, device="cuda")
                self.forward(tensors)
                # further clone and detach it in the cache (just to be safe)
                self.cache[size] = self.cache[size].clone().detach()


to this

# Select the best available device.
if torch.cuda.is_available():
    device = "cuda"
elif torch.backends.mps.is_available():
    device = "mps"
else:
    device = "cpu"

for size in precompute_sizes:
    tensors = torch.zeros((1, 1) + size, device=device)
    self.forward(tensors)
    # further clone and detach it in the cache (just to be safe)
    self.cache[size] = self.cache[size].clone().detach()
# Copyright (c) Meta Platforms, Inc. and affiliates. All Rights Reserved

import math
from typing import Optional

import torch
from torch import nn


class PositionEmbeddingSine(nn.Module):
    """
    This is a more standard version of the position embedding, very similar to the one
    used by the Attention is all you need paper, generalized to work on images.
    """

    def __init__(
        self,
        num_pos_feats,
        temperature: int = 10000,
        normalize: bool = True,
        scale: Optional[float] = None,
        precompute_resolution: Optional[int] = None,
    ):
        super().__init__()
        assert num_pos_feats % 2 == 0, "Expecting even model width"
        self.num_pos_feats = num_pos_feats // 2
        self.temperature = temperature
        self.normalize = normalize
        if scale is not None and normalize is False:
            raise ValueError("normalize should be True if scale is passed")
        if scale is None:
            scale = 2 * math.pi
        self.scale = scale

        self.cache = {}
        # Precompute positional encodings under `precompute_resolution` to fill the cache
        # and avoid symbolic shape tracing errors in torch.compile in PyTorch 2.4 nightly.
        if precompute_resolution is not None:
            # We precompute pos enc for stride 4, 8, 16 and 32 to fill `self.cache`.
            precompute_sizes = [
                (precompute_resolution // 4, precompute_resolution // 4),
                (precompute_resolution // 8, precompute_resolution // 8),
                (precompute_resolution // 16, precompute_resolution // 16),
                (precompute_resolution // 32, precompute_resolution // 32),
            ]
            # Select the best available device.
            if torch.cuda.is_available():
                device = "cuda"
            elif torch.backends.mps.is_available():
                device = "mps"
            else:
                device = "cpu"

            for size in precompute_sizes:
                tensors = torch.zeros((1, 1) + size, device=device)
                self.forward(tensors)
                # further clone and detach it in the cache (just to be safe)
                self.cache[size] = self.cache[size].clone().detach()

    def _encode_xy(self, x, y):
        # The positions are expected to be normalized
        assert len(x) == len(y) and x.ndim == y.ndim == 1
        x_embed = x * self.scale
        y_embed = y * self.scale

        dim_t = torch.arange(self.num_pos_feats, dtype=torch.float32, device=x.device)
        dim_t = self.temperature ** (2 * (dim_t // 2) / self.num_pos_feats)

        pos_x = x_embed[:, None] / dim_t
        pos_y = y_embed[:, None] / dim_t
        pos_x = torch.stack(
            (pos_x[:, 0::2].sin(), pos_x[:, 1::2].cos()), dim=2
        ).flatten(1)
        pos_y = torch.stack(
            (pos_y[:, 0::2].sin(), pos_y[:, 1::2].cos()), dim=2
        ).flatten(1)
        return pos_x, pos_y

    @torch.no_grad()
    def encode_boxes(self, x, y, w, h):
        pos_x, pos_y = self._encode_xy(x, y)
        pos = torch.cat((pos_y, pos_x, h[:, None], w[:, None]), dim=1)
        return pos

    encode = encode_boxes  # Backwards compatibility

    @torch.no_grad()
    def encode_points(self, x, y, labels):
        (bx, nx), (by, ny), (bl, nl) = x.shape, y.shape, labels.shape
        assert bx == by and nx == ny and bx == bl and nx == nl
        pos_x, pos_y = self._encode_xy(x.flatten(), y.flatten())
        pos_x, pos_y = pos_x.reshape(bx, nx, -1), pos_y.reshape(by, ny, -1)
        pos = torch.cat((pos_y, pos_x, labels[:, :, None]), dim=2)
        return pos

    @torch.no_grad()
    def forward(self, x):
        cache_key = None
        cache_key = (x.shape[-2], x.shape[-1])
        if cache_key in self.cache:
            return self.cache[cache_key][None].repeat(x.shape[0], 1, 1, 1)
        y_embed = (
            torch.arange(1, x.shape[-2] + 1, dtype=torch.float32, device=x.device)
            .view(1, -1, 1)
            .repeat(x.shape[0], 1, x.shape[-1])
        )
        x_embed = (
            torch.arange(1, x.shape[-1] + 1, dtype=torch.float32, device=x.device)
            .view(1, 1, -1)
            .repeat(x.shape[0], x.shape[-2], 1)
        )

        if self.normalize:
            eps = 1e-6
            y_embed = y_embed / (y_embed[:, -1:, :] + eps) * self.scale
            x_embed = x_embed / (x_embed[:, :, -1:] + eps) * self.scale

        dim_t = torch.arange(self.num_pos_feats, dtype=torch.float32, device=x.device)
        dim_t = self.temperature ** (2 * (dim_t // 2) / self.num_pos_feats)

        pos_x = x_embed[:, :, :, None] / dim_t
        pos_y = y_embed[:, :, :, None] / dim_t
        pos_x = torch.stack(
            (pos_x[:, :, :, 0::2].sin(), pos_x[:, :, :, 1::2].cos()), dim=4
        ).flatten(3)
        pos_y = torch.stack(
            (pos_y[:, :, :, 0::2].sin(), pos_y[:, :, :, 1::2].cos()), dim=4
        ).flatten(3)
        pos = torch.cat((pos_y, pos_x), dim=3).permute(0, 3, 1, 2)
        if cache_key is not None:
            self.cache[cache_key] = pos[0]
        return pos

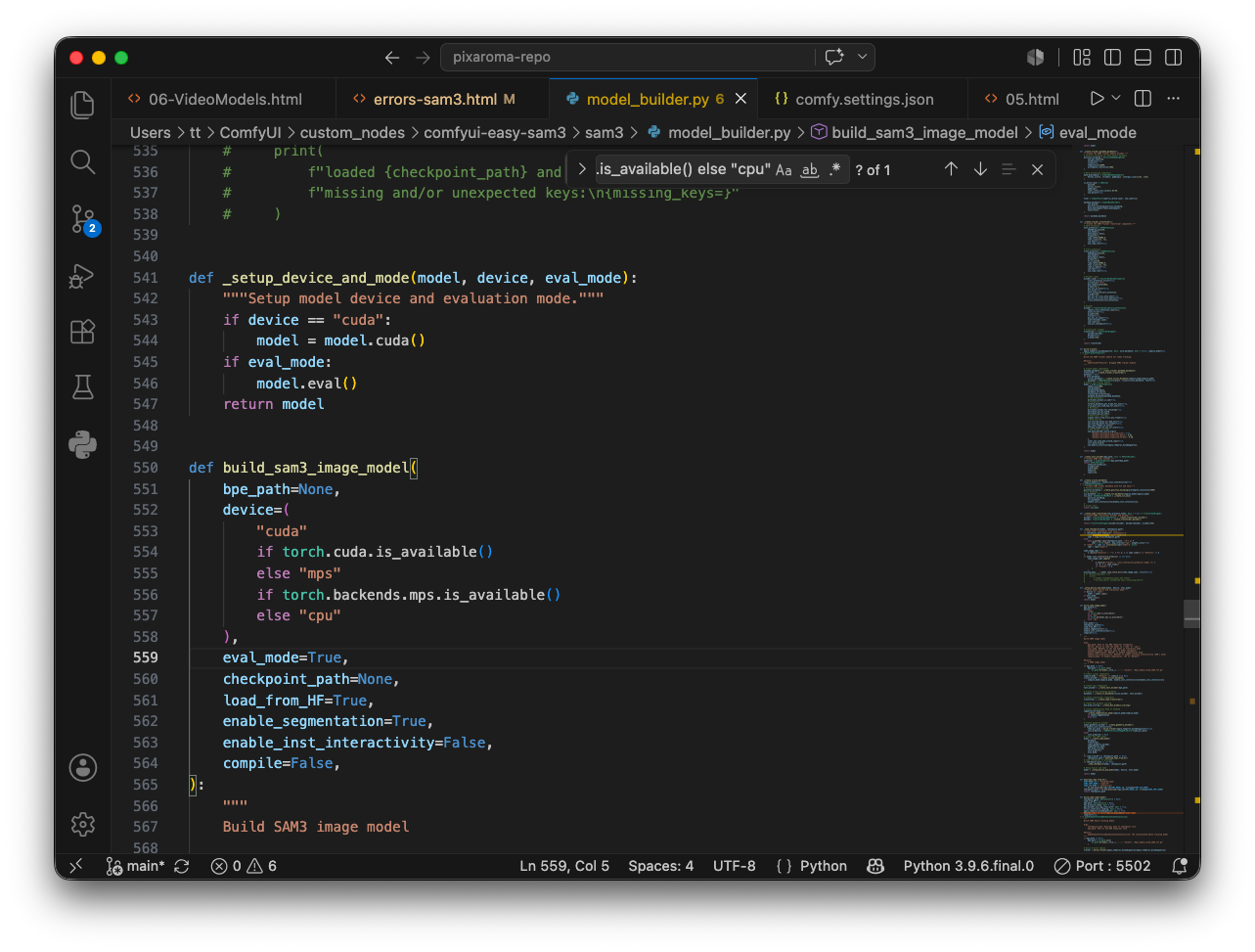

4. Promblem is with 'Cuda

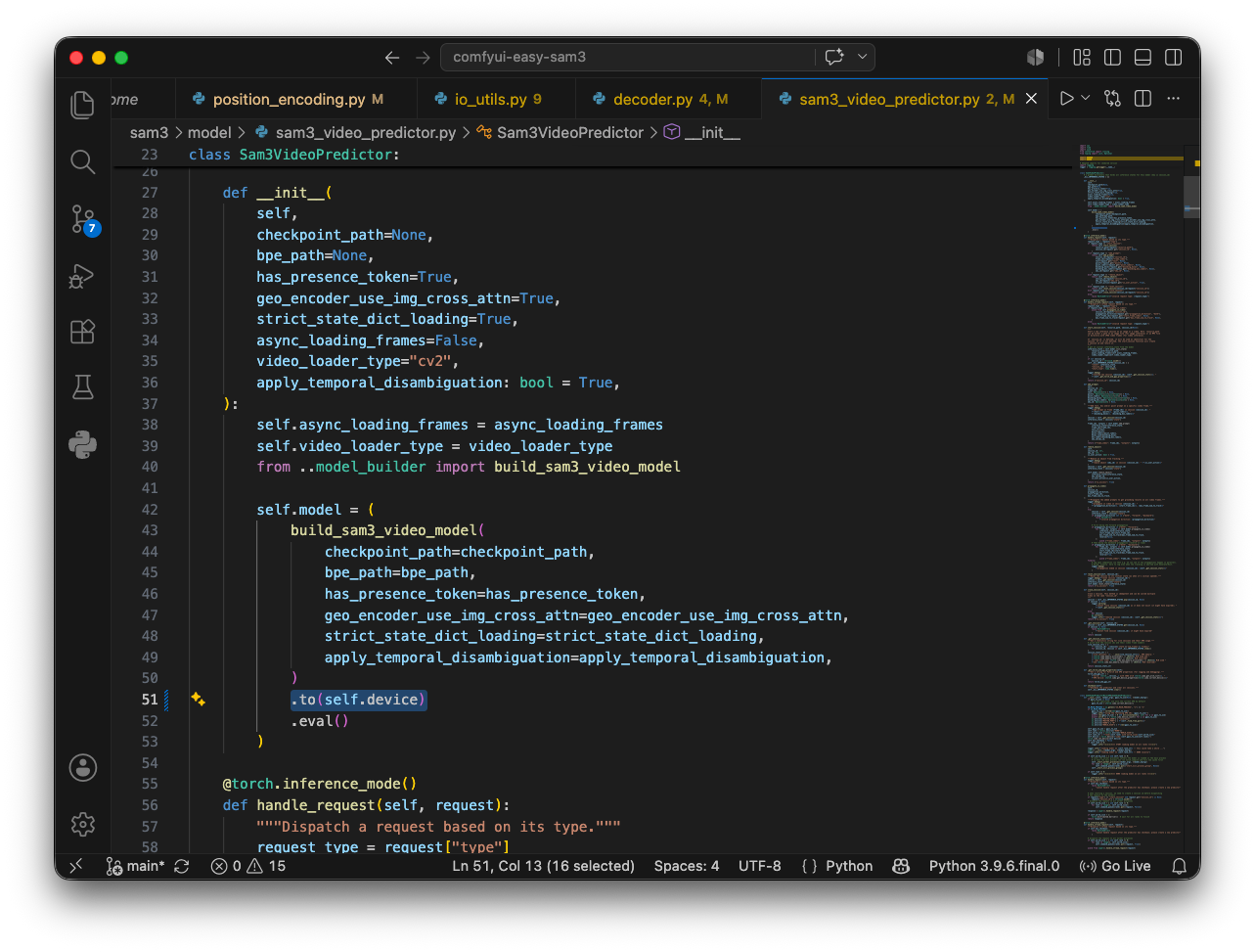

Now, chatgpt says go to ComfyUI/custom_nodes/comfyui-easy-sam3/sam3/model_builder.py

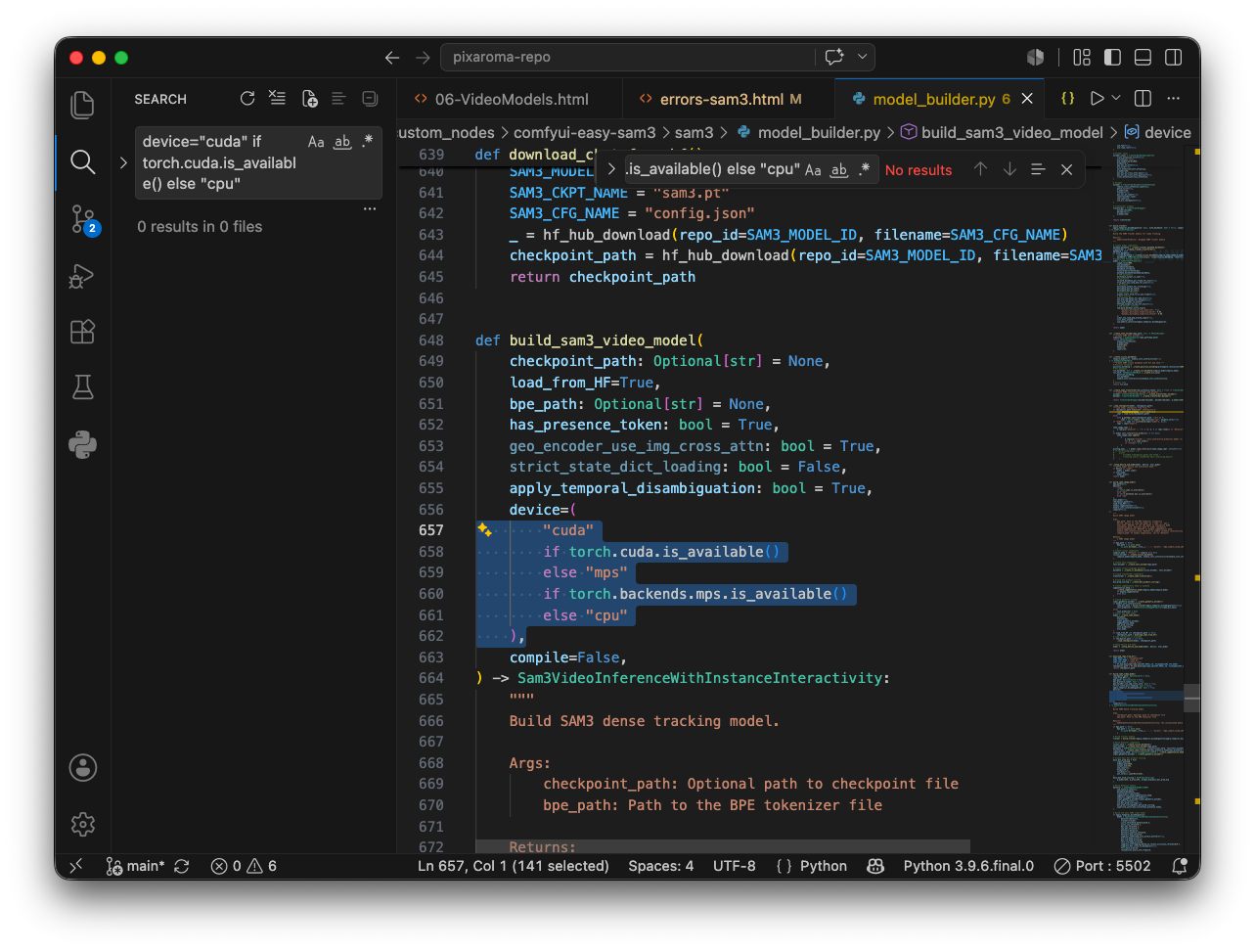

i also did a find all a changed it here

full model_builder.py
# Copyright (c) Meta Platforms, Inc. and affiliates. All Rights Reserved

import os
from typing import Optional

import torch
import torch.nn as nn
from huggingface_hub import hf_hub_download
from iopath.common.file_io import g_pathmgr
from .model.decoder import (
    TransformerDecoder,
    TransformerDecoderLayer,
    TransformerDecoderLayerv2,
    TransformerEncoderCrossAttention,
)
from .model.encoder import TransformerEncoderFusion, TransformerEncoderLayer
from .model.geometry_encoders import SequenceGeometryEncoder
from .model.maskformer_segmentation import PixelDecoder, UniversalSegmentationHead
from .model.memory import (
    CXBlock,
    SimpleFuser,
    SimpleMaskDownSampler,
    SimpleMaskEncoder,
)
from .model.model_misc import (
    DotProductScoring,
    MLP,
    MultiheadAttentionWrapper as MultiheadAttention,
    TransformerWrapper,
)
from .model.necks import Sam3DualViTDetNeck
from .model.position_encoding import PositionEmbeddingSine
from .model.sam1_task_predictor import SAM3InteractiveImagePredictor
from .model.sam3_image import Sam3Image, Sam3ImageOnVideoMultiGPU
from .model.sam3_tracking_predictor import Sam3TrackerPredictor
from .model.sam3_video_inference import Sam3VideoInferenceWithInstanceInteractivity
from .model.sam3_video_predictor import Sam3VideoPredictor, Sam3VideoPredictorMultiGPU
from .model.text_encoder_ve import VETextEncoder
from .model.tokenizer_ve import SimpleTokenizer
from .model.vitdet import ViT
from .model.vl_combiner import SAM3VLBackbone
from .sam.transformer import RoPEAttention


# Setup TensorFloat-32 for Ampere GPUs if available
def _setup_tf32() -> None:
    """Enable TensorFloat-32 for Ampere GPUs if available."""
    if torch.cuda.is_available():
        device_props = torch.cuda.get_device_properties(0)
        if device_props.major >= 8:
            torch.backends.cuda.matmul.allow_tf32 = True
            torch.backends.cudnn.allow_tf32 = True


_setup_tf32()


def _create_position_encoding(precompute_resolution=None):
    """Create position encoding for visual backbone."""
    return PositionEmbeddingSine(
        num_pos_feats=256,
        normalize=True,
        scale=None,
        temperature=10000,
        precompute_resolution=precompute_resolution,
    )


def _create_vit_backbone(compile_mode=None):
    """Create ViT backbone for visual feature extraction."""
    return ViT(
        img_size=1008,
        pretrain_img_size=336,
        patch_size=14,
        embed_dim=1024,
        depth=32,
        num_heads=16,
        mlp_ratio=4.625,
        norm_layer="LayerNorm",
        drop_path_rate=0.1,
        qkv_bias=True,
        use_abs_pos=True,
        tile_abs_pos=True,
        global_att_blocks=(7, 15, 23, 31),
        rel_pos_blocks=(),
        use_rope=True,
        use_interp_rope=True,
        window_size=24,
        pretrain_use_cls_token=True,
        retain_cls_token=False,
        ln_pre=True,
        ln_post=False,
        return_interm_layers=False,
        bias_patch_embed=False,
        compile_mode=compile_mode,
    )


def _create_vit_neck(position_encoding, vit_backbone, enable_inst_interactivity=False):
    """Create ViT neck for feature pyramid."""
    return Sam3DualViTDetNeck(
        position_encoding=position_encoding,
        d_model=256,
        scale_factors=[4.0, 2.0, 1.0, 0.5],
        trunk=vit_backbone,
        add_sam2_neck=enable_inst_interactivity,
    )


def _create_vl_backbone(vit_neck, text_encoder):
    """Create visual-language backbone."""
    return SAM3VLBackbone(visual=vit_neck, text=text_encoder, scalp=1)


def _create_transformer_encoder() -> TransformerEncoderFusion:
    """Create transformer encoder with its layer."""
    encoder_layer = TransformerEncoderLayer(
        activation="relu",
        d_model=256,
        dim_feedforward=2048,
        dropout=0.1,
        pos_enc_at_attn=True,
        pos_enc_at_cross_attn_keys=False,
        pos_enc_at_cross_attn_queries=False,
        pre_norm=True,
        self_attention=MultiheadAttention(
            num_heads=8,
            dropout=0.1,
            embed_dim=256,
            batch_first=True,
        ),
        cross_attention=MultiheadAttention(
            num_heads=8,
            dropout=0.1,
            embed_dim=256,
            batch_first=True,
        ),
    )

    encoder = TransformerEncoderFusion(
        layer=encoder_layer,
        num_layers=6,
        d_model=256,
        num_feature_levels=1,
        frozen=False,
        use_act_checkpoint=True,
        add_pooled_text_to_img_feat=False,
        pool_text_with_mask=True,
    )
    return encoder


def _create_transformer_decoder() -> TransformerDecoder:
    """Create transformer decoder with its layer."""
    decoder_layer = TransformerDecoderLayer(
        activation="relu",
        d_model=256,
        dim_feedforward=2048,
        dropout=0.1,
        cross_attention=MultiheadAttention(
            num_heads=8,
            dropout=0.1,
            embed_dim=256,
        ),
        n_heads=8,
        use_text_cross_attention=True,
    )

    decoder = TransformerDecoder(
        layer=decoder_layer,
        num_layers=6,
        num_queries=200,
        return_intermediate=True,
        box_refine=True,
        num_o2m_queries=0,
        dac=True,
        boxRPB="log",
        d_model=256,
        frozen=False,
        interaction_layer=None,
        dac_use_selfatt_ln=True,
        resolution=1008,
        stride=14,
        use_act_checkpoint=True,
        presence_token=True,
    )
    return decoder


def _create_dot_product_scoring():
    """Create dot product scoring module."""
    prompt_mlp = MLP(
        input_dim=256,
        hidden_dim=2048,
        output_dim=256,
        num_layers=2,
        dropout=0.1,
        residual=True,
        out_norm=nn.LayerNorm(256),
    )
    return DotProductScoring(d_model=256, d_proj=256, prompt_mlp=prompt_mlp)


def _create_segmentation_head(compile_mode=None):
    """Create segmentation head with pixel decoder."""
    pixel_decoder = PixelDecoder(
        num_upsampling_stages=3,
        interpolation_mode="nearest",
        hidden_dim=256,
        compile_mode=compile_mode,
    )

    cross_attend_prompt = MultiheadAttention(
        num_heads=8,
        dropout=0,
        embed_dim=256,
    )

    segmentation_head = UniversalSegmentationHead(
        hidden_dim=256,
        upsampling_stages=3,
        aux_masks=False,
        presence_head=False,
        dot_product_scorer=None,
        act_ckpt=True,
        cross_attend_prompt=cross_attend_prompt,
        pixel_decoder=pixel_decoder,
    )
    return segmentation_head


def _create_geometry_encoder():
    """Create geometry encoder with all its components."""
    # Create position encoding for geometry encoder
    geo_pos_enc = _create_position_encoding()
    # Create CX block for fuser
    cx_block = CXBlock(
        dim=256,
        kernel_size=7,
        padding=3,
        layer_scale_init_value=1.0e-06,
        use_dwconv=True,
    )
    # Create geometry encoder layer
    geo_layer = TransformerEncoderLayer(
        activation="relu",
        d_model=256,
        dim_feedforward=2048,
        dropout=0.1,
        pos_enc_at_attn=False,
        pre_norm=True,
        self_attention=MultiheadAttention(
            num_heads=8,
            dropout=0.1,
            embed_dim=256,
            batch_first=False,
        ),
        pos_enc_at_cross_attn_queries=False,
        pos_enc_at_cross_attn_keys=True,
        cross_attention=MultiheadAttention(
            num_heads=8,
            dropout=0.1,
            embed_dim=256,
            batch_first=False,
        ),
    )

    # Create geometry encoder
    input_geometry_encoder = SequenceGeometryEncoder(
        pos_enc=geo_pos_enc,
        encode_boxes_as_points=False,
        points_direct_project=True,
        points_pool=True,
        points_pos_enc=True,
        boxes_direct_project=True,
        boxes_pool=True,
        boxes_pos_enc=True,
        d_model=256,
        num_layers=3,
        layer=geo_layer,
        use_act_ckpt=True,
        add_cls=True,
        add_post_encode_proj=True,
    )
    return input_geometry_encoder


def _create_sam3_model(
    backbone,
    transformer,
    input_geometry_encoder,
    segmentation_head,
    dot_prod_scoring,
    inst_interactive_predictor,
    eval_mode,
):
    """Create the SAM3 image model."""
    common_params = {
        "backbone": backbone,
        "transformer": transformer,
        "input_geometry_encoder": input_geometry_encoder,
        "segmentation_head": segmentation_head,
        "num_feature_levels": 1,
        "o2m_mask_predict": True,
        "dot_prod_scoring": dot_prod_scoring,
        "use_instance_query": False,
        "multimask_output": True,
        "inst_interactive_predictor": inst_interactive_predictor,
    }

    matcher = None
    common_params["matcher"] = matcher
    model = Sam3Image(**common_params)

    return model


def _create_tracker_maskmem_backbone():
    """Create the SAM3 Tracker memory encoder."""
    # Position encoding for mask memory backbone
    position_encoding = PositionEmbeddingSine(
        num_pos_feats=64,
        normalize=True,
        scale=None,
        temperature=10000,
        precompute_resolution=1008,
    )

    # Mask processing components
    mask_downsampler = SimpleMaskDownSampler(
        kernel_size=3, stride=2, padding=1, interpol_size=[1152, 1152]
    )

    cx_block_layer = CXBlock(
        dim=256,
        kernel_size=7,
        padding=3,
        layer_scale_init_value=1.0e-06,
        use_dwconv=True,
    )

    fuser = SimpleFuser(layer=cx_block_layer, num_layers=2)

    maskmem_backbone = SimpleMaskEncoder(
        out_dim=64,
        position_encoding=position_encoding,
        mask_downsampler=mask_downsampler,
        fuser=fuser,
    )

    return maskmem_backbone


def _create_tracker_transformer():
    """Create the SAM3 Tracker transformer components."""
    # Self attention
    self_attention = RoPEAttention(
        embedding_dim=256,
        num_heads=1,
        downsample_rate=1,
        dropout=0.1,
        rope_theta=10000.0,
        feat_sizes=[72, 72],
        use_fa3=False,
        use_rope_real=False,
    )

    # Cross attention
    cross_attention = RoPEAttention(
        embedding_dim=256,
        num_heads=1,
        downsample_rate=1,
        dropout=0.1,
        kv_in_dim=64,
        rope_theta=10000.0,
        feat_sizes=[72, 72],
        rope_k_repeat=True,
        use_fa3=False,
        use_rope_real=False,
    )

    # Encoder layer
    encoder_layer = TransformerDecoderLayerv2(
        cross_attention_first=False,
        activation="relu",
        dim_feedforward=2048,
        dropout=0.1,
        pos_enc_at_attn=False,
        pre_norm=True,
        self_attention=self_attention,
        d_model=256,
        pos_enc_at_cross_attn_keys=True,
        pos_enc_at_cross_attn_queries=False,
        cross_attention=cross_attention,
    )

    # Encoder
    encoder = TransformerEncoderCrossAttention(
        remove_cross_attention_layers=[],
        batch_first=True,
        d_model=256,
        frozen=False,
        pos_enc_at_input=True,
        layer=encoder_layer,
        num_layers=4,
        use_act_checkpoint=False,
    )

    # Transformer wrapper
    transformer = TransformerWrapper(
        encoder=encoder,
        decoder=None,
        d_model=256,
    )

    return transformer


def build_tracker(
    apply_temporal_disambiguation: bool, with_backbone: bool = False, compile_mode=None
) -> Sam3TrackerPredictor:
    """
    Build the SAM3 Tracker module for video tracking.

    Returns:
        Sam3TrackerPredictor: Wrapped SAM3 Tracker module
    """

    # Create model components
    maskmem_backbone = _create_tracker_maskmem_backbone()
    transformer = _create_tracker_transformer()
    backbone = None
    if with_backbone:
        vision_backbone = _create_vision_backbone(compile_mode=compile_mode)
        backbone = SAM3VLBackbone(scalp=1, visual=vision_backbone, text=None)
    # Create the Tracker module
    model = Sam3TrackerPredictor(
        image_size=1008,
        num_maskmem=7,
        backbone=backbone,
        backbone_stride=14,
        transformer=transformer,
        maskmem_backbone=maskmem_backbone,
        # SAM parameters
        multimask_output_in_sam=True,
        # Evaluation
        forward_backbone_per_frame_for_eval=True,
        trim_past_non_cond_mem_for_eval=False,
        # Multimask
        multimask_output_for_tracking=True,
        multimask_min_pt_num=0,
        multimask_max_pt_num=1,
        # Additional settings
        always_start_from_first_ann_frame=False,
        # Mask overlap
        non_overlap_masks_for_mem_enc=False,
        non_overlap_masks_for_output=False,
        max_cond_frames_in_attn=4,
        offload_output_to_cpu_for_eval=False,
        # SAM decoder settings
        sam_mask_decoder_extra_args={
            "dynamic_multimask_via_stability": True,
            "dynamic_multimask_stability_delta": 0.05,
            "dynamic_multimask_stability_thresh": 0.98,
        },
        clear_non_cond_mem_around_input=True,
        fill_hole_area=0,
        use_memory_selection=apply_temporal_disambiguation,
    )

    return model


def _create_text_encoder(bpe_path: str) -> VETextEncoder:
    """Create SAM3 text encoder."""
    tokenizer = SimpleTokenizer(bpe_path=bpe_path)
    return VETextEncoder(
        tokenizer=tokenizer,
        d_model=256,
        width=1024,
        heads=16,
        layers=24,
    )


def _create_vision_backbone(
    compile_mode=None, enable_inst_interactivity=True
) -> Sam3DualViTDetNeck:
    """Create SAM3 visual backbone with ViT and neck."""
    # Position encoding
    position_encoding = _create_position_encoding(precompute_resolution=1008)
    # ViT backbone
    vit_backbone: ViT = _create_vit_backbone(compile_mode=compile_mode)
    vit_neck: Sam3DualViTDetNeck = _create_vit_neck(
        position_encoding,
        vit_backbone,
        enable_inst_interactivity=enable_inst_interactivity,
    )
    # Visual neck
    return vit_neck


def _create_sam3_transformer(has_presence_token: bool = True) -> TransformerWrapper:
    """Create SAM3 transformer encoder and decoder."""
    encoder: TransformerEncoderFusion = _create_transformer_encoder()
    decoder: TransformerDecoder = _create_transformer_decoder()

    return TransformerWrapper(encoder=encoder, decoder=decoder, d_model=256)


def _load_checkpoint(model, checkpoint_path):
    """Load model checkpoint from file."""
    if checkpoint_path.endswith(".safetensors"):
        from safetensors.torch import load_file
        ckpt = load_file(checkpoint_path)
    else:
        with g_pathmgr.open(checkpoint_path, "rb") as f:
            ckpt = torch.load(f, map_location="cpu", weights_only=True)
    if "model" in ckpt and isinstance(ckpt["model"], dict):
        ckpt = ckpt["model"]

    sam3_image_ckpt = {
        k.replace("detector.", ""): v for k, v in ckpt.items() if "detector" in k
    }
    if model.inst_interactive_predictor is not None:
        sam3_image_ckpt.update(
            {
                k.replace("tracker.", "inst_interactive_predictor.model."): v
                for k, v in ckpt.items()
                if "tracker" in k
            }
        )
    missing_keys, _ = model.load_state_dict(sam3_image_ckpt, strict=False)
    # if len(missing_keys) > 0:
    #     print(
    #         f"loaded {checkpoint_path} and found "
    #         f"missing and/or unexpected keys:\n{missing_keys=}"
    #     )


def _setup_device_and_mode(model, device, eval_mode):
    """Setup model device and evaluation mode."""
    if device == "cuda":
        model = model.cuda()
    if eval_mode:
        model.eval()
    return model


def build_sam3_image_model(
    bpe_path=None,
    device=(
        "cuda"
        if torch.cuda.is_available()
        else "mps"
        if torch.backends.mps.is_available()
        else "cpu"
    ),
    eval_mode=True,
    checkpoint_path=None,
    load_from_HF=True,
    enable_segmentation=True,
    enable_inst_interactivity=False,
    compile=False,
):
    """
    Build SAM3 image model

    Args:
        bpe_path: Path to the BPE tokenizer vocabulary
        device: Device to load the model on ('cuda' or 'cpu')
        eval_mode: Whether to set the model to evaluation mode
        checkpoint_path: Optional path to model checkpoint
        enable_segmentation: Whether to enable segmentation head
        enable_inst_interactivity: Whether to enable instance interactivity (SAM 1 task)
        compile_mode: To enable compilation, set to "default"

    Returns:
        A SAM3 image model
    """
    if bpe_path is None:
        bpe_path = os.path.join(
            os.path.dirname(__file__), "..", "assets", "bpe_simple_vocab_16e6.txt.gz"
        )
    # Create visual components
    compile_mode = "default" if compile else None
    vision_encoder = _create_vision_backbone(
        compile_mode=compile_mode, enable_inst_interactivity=enable_inst_interactivity
    )

    # Create text components
    text_encoder = _create_text_encoder(bpe_path)

    # Create visual-language backbone
    backbone = _create_vl_backbone(vision_encoder, text_encoder)

    # Create transformer components
    transformer = _create_sam3_transformer()

    # Create dot product scoring
    dot_prod_scoring = _create_dot_product_scoring()

    # Create segmentation head if enabled
    segmentation_head = (
        _create_segmentation_head(compile_mode=compile_mode)
        if enable_segmentation
        else None
    )

    # Create geometry encoder
    input_geometry_encoder = _create_geometry_encoder()
    if enable_inst_interactivity:
        sam3_pvs_base = build_tracker(apply_temporal_disambiguation=False)
        inst_predictor = SAM3InteractiveImagePredictor(sam3_pvs_base)
    else:
        inst_predictor = None
    # Create the SAM3 model
    model = _create_sam3_model(
        backbone,
        transformer,
        input_geometry_encoder,
        segmentation_head,
        dot_prod_scoring,
        inst_predictor,
        eval_mode,
    )
    if load_from_HF and checkpoint_path is None:
        checkpoint_path = download_ckpt_from_hf()
    # Load checkpoint if provided
    if checkpoint_path is not None:
        _load_checkpoint(model, checkpoint_path)

    # Setup device and mode
    model = _setup_device_and_mode(model, device, eval_mode)

    return model


def download_ckpt_from_hf():
    SAM3_MODEL_ID = "facebook/sam3"
    SAM3_CKPT_NAME = "sam3.pt"
    SAM3_CFG_NAME = "config.json"
    _ = hf_hub_download(repo_id=SAM3_MODEL_ID, filename=SAM3_CFG_NAME)
    checkpoint_path = hf_hub_download(repo_id=SAM3_MODEL_ID, filename=SAM3_CKPT_NAME)
    return checkpoint_path


def build_sam3_video_model(
    checkpoint_path: Optional[str] = None,
    load_from_HF=True,
    bpe_path: Optional[str] = None,
    has_presence_token: bool = True,
    geo_encoder_use_img_cross_attn: bool = True,
    strict_state_dict_loading: bool = False,
    apply_temporal_disambiguation: bool = True,
    device=(
        "cuda"
        if torch.cuda.is_available()
        else "mps"
        if torch.backends.mps.is_available()
        else "cpu"
    ),
    compile=False,
) -> Sam3VideoInferenceWithInstanceInteractivity:
    """
    Build SAM3 dense tracking model.

    Args:
        checkpoint_path: Optional path to checkpoint file
        bpe_path: Path to the BPE tokenizer file

    Returns:
        Sam3VideoInferenceWithInstanceInteractivity: The instantiated dense tracking model
    """
    if bpe_path is None:
        bpe_path = os.path.join(
            os.path.dirname(__file__), "..", "assets", "bpe_simple_vocab_16e6.txt.gz"
        )

    # Build Tracker module
    tracker = build_tracker(apply_temporal_disambiguation=apply_temporal_disambiguation)

    # Build Detector components
    visual_neck = _create_vision_backbone()
    text_encoder = _create_text_encoder(bpe_path)
    backbone = SAM3VLBackbone(scalp=1, visual=visual_neck, text=text_encoder)
    transformer = _create_sam3_transformer(has_presence_token=has_presence_token)
    segmentation_head: UniversalSegmentationHead = _create_segmentation_head()
    input_geometry_encoder = _create_geometry_encoder()

    # Create main dot product scoring
    main_dot_prod_mlp = MLP(
        input_dim=256,
        hidden_dim=2048,
        output_dim=256,
        num_layers=2,
        dropout=0.1,
        residual=True,
        out_norm=nn.LayerNorm(256),
    )
    main_dot_prod_scoring = DotProductScoring(
        d_model=256, d_proj=256, prompt_mlp=main_dot_prod_mlp
    )

    # Build Detector module
    detector = Sam3ImageOnVideoMultiGPU(
        num_feature_levels=1,
        backbone=backbone,
        transformer=transformer,
        segmentation_head=segmentation_head,
        semantic_segmentation_head=None,
        input_geometry_encoder=input_geometry_encoder,
        use_early_fusion=True,
        use_dot_prod_scoring=True,
        dot_prod_scoring=main_dot_prod_scoring,
        supervise_joint_box_scores=has_presence_token,
    )

    # Build the main SAM3 video model
    if apply_temporal_disambiguation:
        model = Sam3VideoInferenceWithInstanceInteractivity(
            detector=detector,
            tracker=tracker,
            score_threshold_detection=0.5,
            assoc_iou_thresh=0.1,
            det_nms_thresh=0.1,
            new_det_thresh=0.7,
            hotstart_delay=15,
            hotstart_unmatch_thresh=8,
            hotstart_dup_thresh=8,
            suppress_unmatched_only_within_hotstart=True,
            min_trk_keep_alive=-1,
            max_trk_keep_alive=30,
            init_trk_keep_alive=30,
            suppress_overlapping_based_on_recent_occlusion_threshold=0.7,
            suppress_det_close_to_boundary=False,
            fill_hole_area=16,
            recondition_every_nth_frame=16,
            masklet_confirmation_enable=False,
            decrease_trk_keep_alive_for_empty_masklets=False,
            image_size=1008,
            image_mean=(0.5, 0.5, 0.5),
            image_std=(0.5, 0.5, 0.5),
            compile_model=compile,
        )
    else:
        # a version without any heuristics for ablation studies
        model = Sam3VideoInferenceWithInstanceInteractivity(
            detector=detector,
            tracker=tracker,
            score_threshold_detection=0.5,
            assoc_iou_thresh=0.1,
            det_nms_thresh=0.1,
            new_det_thresh=0.7,
            hotstart_delay=0,
            hotstart_unmatch_thresh=0,
            hotstart_dup_thresh=0,
            suppress_unmatched_only_within_hotstart=True,
            min_trk_keep_alive=-1,
            max_trk_keep_alive=30,
            init_trk_keep_alive=30,
            suppress_overlapping_based_on_recent_occlusion_threshold=0.7,
            suppress_det_close_to_boundary=False,
            fill_hole_area=16,
            recondition_every_nth_frame=0,
            masklet_confirmation_enable=False,
            decrease_trk_keep_alive_for_empty_masklets=False,
            image_size=1008,
            image_mean=(0.5, 0.5, 0.5),
            image_std=(0.5, 0.5, 0.5),
            compile_model=compile,
        )

    # Load checkpoint if provided
    if load_from_HF and checkpoint_path is None:
        checkpoint_path = download_ckpt_from_hf()
    if checkpoint_path is not None:
        if checkpoint_path.endswith(".safetensors"):
            from safetensors.torch import load_file
            ckpt = load_file(checkpoint_path)
        else:
            with g_pathmgr.open(checkpoint_path, "rb") as f:
                ckpt = torch.load(f, map_location="cpu", weights_only=True)
        if "model" in ckpt and isinstance(ckpt["model"], dict):
            ckpt = ckpt["model"]

        missing_keys, unexpected_keys = model.load_state_dict(
            ckpt, strict=False
        )
        # if missing_keys:
        #     print(f"Missing keys: {missing_keys}")
        if unexpected_keys:
            print(f"Unexpected keys: {unexpected_keys}")

    model.to(device=device)
    return model


def build_sam3_video_predictor(*model_args, gpus_to_use=None, **model_kwargs):
    if gpus_to_use is not None:
        return Sam3VideoPredictorMultiGPU(
            *model_args, gpus_to_use=gpus_to_use, **model_kwargs
        )
    else:
        return Sam3VideoPredictor(
            *model_args, **model_kwargs
        )

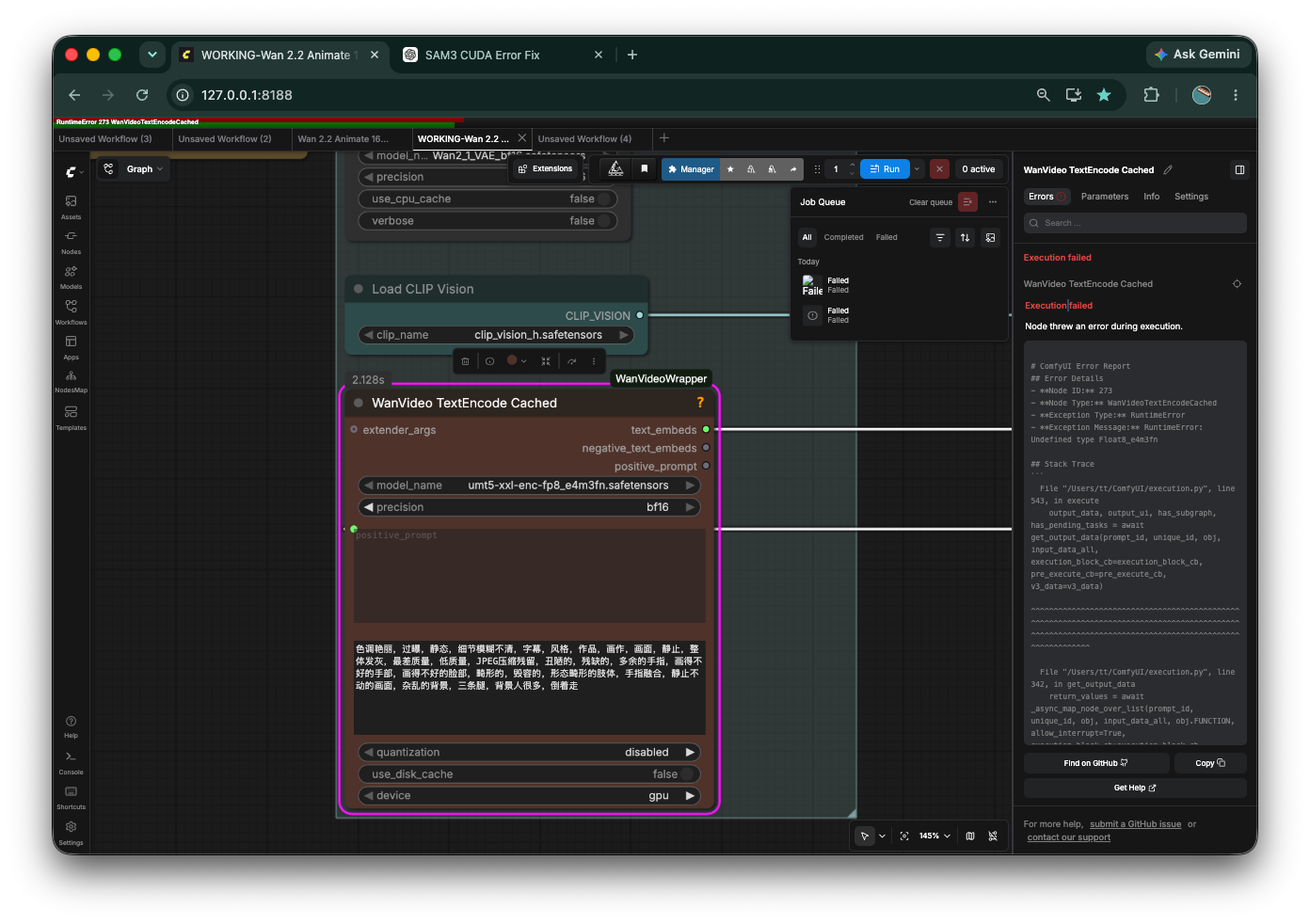

5 DO NOT USE fp8 models!!

THEY DO NOT WORK on mac, use bf16 or fp16

MAC WANT bf16

Install the text_encoder,

umt5-xxl-enc-bf16.safetensors

change device on sam3 device to MPS,

there will be erros because we have to change any cuda() in the python scripts

6 change cuda() to...

go to /Users/tt/ComfyUI/custom_nodes/comfyui-easy-sam3/io_utils.py

change anything with cuda()

This won't work

go to next step to fix decoder

img_mean = img_mean.cuda()

to

img_mean = img_mean.to(device)

and

img_std = img_std.cuda()

to

img_std = img_std.to(device)

7 sam3/model/decoder

go to /Users/tt/ComfyUI/custom_nodes/comfyui-easy-sam3/sam3/model/decoder.py

find,

coords_h, coords_w = self._get_coords(
feat_size, feat_size, device="cuda")

change device="cuda" to

device="cuda"

and at top of decoder add this,

import torch

SAM3_DEVICE = "mps" if torch.backends.mps.is_available() else "cuda" if torch.cuda.is_available() else "cpu"


then change remaining

device="cuda"

to

device=SAM3_DEVICE

clear cashe

find ~/ComfyUI/custom_nodes/comfyui-easy-sam3 -name "__pycache__" -type d -exec rm -rf {} +

7

in sam3_video_predictor.py

change the .cuda() in

self.model = (
    build_sam3_video_model(...)
    .cuda()
)

to

.to(self.device)

so the stuff with .device too

self.model = (
    build_sam3_video_model(...)
    .to(self.device)                       )

then casche again

find ~/ComfyUI/custom_nodes/comfyui-easy-sam3 -name "__pycache__" -type d -exec rm -rf {} +

restart again

8

open ~/ComfyUI/custom_nodes/comfyui-easy-sam3/sam3/model/sam3_video_predictor.py

look for

class Sam3VideoPredictor:
def __init__(..., device=...):

or

def __init__(self, ...):

change

):
    self.async_loading_frames = async_loading_frames
    self.video_loader_type = video_loader_type
    from ..model_builder import build_sam3_video_model

to

):
    self.async_loading_frames = async_loading_frames
    self.video_loader_type = video_loader_type

    self.device = (
        torch.device("mps")
        if torch.backends.mps.is_available()
        else torch.device("cuda")
        if torch.cuda.is_available()
        else torch.device("cpu")
    )

    from ..model_builder import build_sam3_video_model

    self.model = (
        build_sam3_video_model(
            checkpoint_path=checkpoint_path,
            bpe_path=bpe_path,
            has_presence_token=has_presence_token,
            geo_encoder_use_img_cross_attn=geo_encoder_use_img_cross_attn,
            strict_state_dict_loading=strict_state_dict_loading,
            apply_temporal_disambiguation=apply_temporal_disambiguation,
        )
        .to(self.device)
        .eval()
    )

leave this part alone

.to(self.device)
.eval()

10

error now in

sam3/model/io_utils.py", line 66
images = images.cuda()

change

images = images.cuda()

to

images = images.to("mps")

But let's make it cleaner because there are multiple .cuda() calls in this file. At the top of io_utils.py, after:

import torch

add

DEVICE = (
torch.device("mps")
if torch.backends.mps.is_available()
else torch.device("cuda")
if torch.cuda.is_available()
else torch.device("cpu")                   )

then replace

images = images.cuda()

to

images = images.to(DEVICE)

find a replace

img_mean = img_mean.cuda()

to

img_mean = img_mean.to(DEVICE)

img_std = img_std.cuda()

to

img_std = img_std.to(DEVICE)

then casche

find ~/ComfyUI/custom_nodes/comfyui-easy-sam3 -name "__pycache__" -type d -exec rm -rf {} +

11 fix __init__.py

in sam3/__init__.py or sam3/model/sam3_video_predictor.py

look for

torch.cuda.current_device()

It's in sam3_video_predictor

open nano ~/ComfyUI/custom_nodes/comfyui-easy-sam3/sam3/model/io_utils.py

Go around line 510-520. You should see something like:

if gpu_device is None:
    gpu_device = torch.device(
    "cuda",
    torch.cuda.current_device()
    )

or

else torch.cuda.current_device()

it is else torch.cuda.current_device()

If you added the DEVICE variable earlier, replace

gpu_id = (
        gpu_device.index
        if gpu_device is not None and gpu_device.index is not None
        else torch.cuda.current_device()
    )
    if offload_video_to_cpu:
        out_device = torch.device("cpu")
    else:
        out_device = torch.device("cuda") if gpu_device is None else gpu_device

with

if gpu_device is not None and gpu_device.index is not None:
    gpu_id = gpu_device.index
else:
    gpu_id = 0

if offload_video_to_cpu:
    out_device = torch.device("cpu")
else:
    out_device = DEVICE if gpu_device is None else gpu_device

change

assert gpu_device is None or gpu_device.type == "cuda"

to

assert gpu_device is None or gpu_device.type in ["cuda", "mps", "cpu"]
if not self.offload_video_to_cpu:
    img = img.cuda()

to

if not self.offload_video_to_cpu:
    img = img.to(DEVICE)
AHHH
img = img.cuda()

to

img = img.to(DEVICE)
find ~/ComfyUI/custom_nodes/comfyui-easy-sam3 -name "__pycache__" -type d -exec rm -rf {} +

11?

go ~/ComfyUI/custom_nodes/comfyui-easy-sam3/sam3/model/sam3_video_predictor.py

find

_get_torch_and_gpu_properties

or

current_device

or

f"GPU device: {torch.cuda.get_device_properties(torch.cuda.current_device())}"

I SEE all 3

replace f"device above to

f"Device: {self.device}"

13?

open ~/ComfyUI/custom_nodes/comfyui-easy-sam3/sam3/model/geometry_encoders.py

find

scale = scale.pin_memory().to(device=boxes_xyxy.device, non_blocking=True)

replace with

scale = scale.to(device=boxes_xyxy.device)

clear cashe and restart

find ~/ComfyUI/custom_nodes/comfyui-easy-sam3 -name "__pycache__" -type d -exec rm -rf {} +

14

open /Users/tt/ComfyUI/custom_nodes/comfyui-easy-sam3/sam3/model/geometry_encoders.py

replace

scale = scale.pin_memory().to(device=boxes_xyxy.device, non_blocking=True)

replace with

scale = scale.to(device=boxes_xyxy.device)

clear cashe and restart

find ~/ComfyUI/custom_nodes/comfyui-easy-sam3 -name "__pycache__" -type d -exec rm -rf {} +

go to chatgpt programshorctus account to

WanVideo Text Encoder Debug

question: i can't type anymore
